Infrared Boiler Thermometer

Infrared-Boiler-Thermometer-15-1-scaled
Infra-View® Boiler/Furnace Thermometer

Easy way to read flue exit gas temperatures to help with startup/shutdown, slagging/fouling, heat transfer, and many more!

Medium: Combustion Gases
Temperature Range: Up to 4,500F
Passive Reading, Low Maintenance

Read More

Portable Infrared Boiler Thermometer
Infra-View® Portable Infrared Boiler Thermometer

Handheld Infra-View® sensor with carrying case, tripod, mounting bracket and local readout. Good for taking temporary readings at various locations to ensure proper heat transfer and operation of emissions control systems such as FGDs and SNCRs.

Medium: Combustion Gases
Temperature Range: Up to 4,500F
Great for system evaluation

Read More

Infrared Buss Duct Thermometer
Infra-View® GB/IS Buss Bar Thermometer

Have an uprated generator but the old buss work? Our Infra-View® GB/IS Buss Bar Thermometer will track buss temperatures and alert operators to protect from buss work damage and unplanned downtime!

Medium: Ductwork Material
Temperature Range: 0 to 1,000F
Easy to Install

Read More

Instructions and Documentation
Instructions and Documentation

Here you can find installation instructions and technical documentation relevant to working with Infra-View® Boiler/Furnace and Buss Duct Thermometers!

Read More

Additional Services
Boiler Optimization & Consulting Services

We also offer a variety of services to help your boiler optimization projects. JNT can develop custom solutions in just days and develop software and documentation to make finding the right solution as simple as possible. Contact us now to see how we can help!

Read More

Infrared
Sensor Calibrations

Click here to submit a request for calibration. We will get back to you within 24 hours with a quote, RMA#, and return ship information.

Read More

Infra-View® Pyrometer Selector
Infra-View® Pyrometer Selector

Need help finding the correct infrared pyrometer for your plant's boiler/furnace or generator buss duct? JNT's Infra-View® Pyrometer Selector will take you step by step through the selection process, ensuring you end up with the right solution for your application. At the end you can simply submit the form to request a quote and a representative will contact you within 24 hours.

Read More

Get a Quote
Get a Quote

Already know what you need? Simply enter in your contact information and part number or request, one of our sales people will contact you with pricing within 24 hours.

Read More

Contact Us
Contact Us

General questions and comments related to Infra-View® Infrared Boiler/Furnace Thermometer. One of our engineers will contact you within 24 hours.

Read More

Use our Pyrometer Selector to find the right solution for your temperature monitoring needs and place a request for quote.

Click Here for Pyrometer Selector
What We Do

Infra-View® Infrared Boiler Thermometer

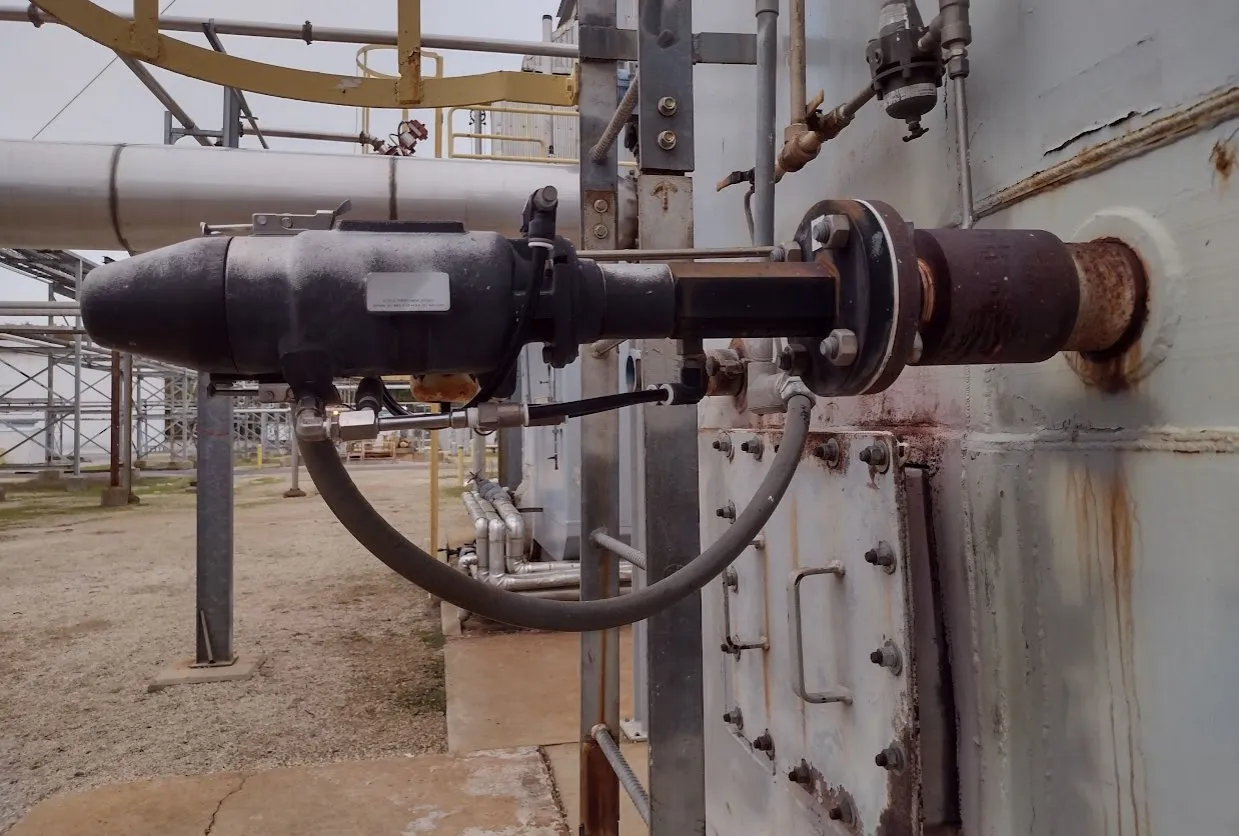

Infra-View® Infrared Boiler Thermometer is a patented, remote sensing infrared detector, supplied with a rugged protective-cooling jacket that can be permanently flange mounted on any port, door or penetration into the boiler or furnace.

In addition, a portable version can be configured to be used for on-site testing purposes in order to maximize boiler efficiency.

  • Infrared Boiler Thermometer
  • Boiler Thermometer
  • Boiler Temperature Monitoring
  • Flue Exit Gas Temperature
  • Furnace and Gas Temperature Monitoring
  • FEGT
  • Temperature Profiling
  • Gas Temperature Monitoring

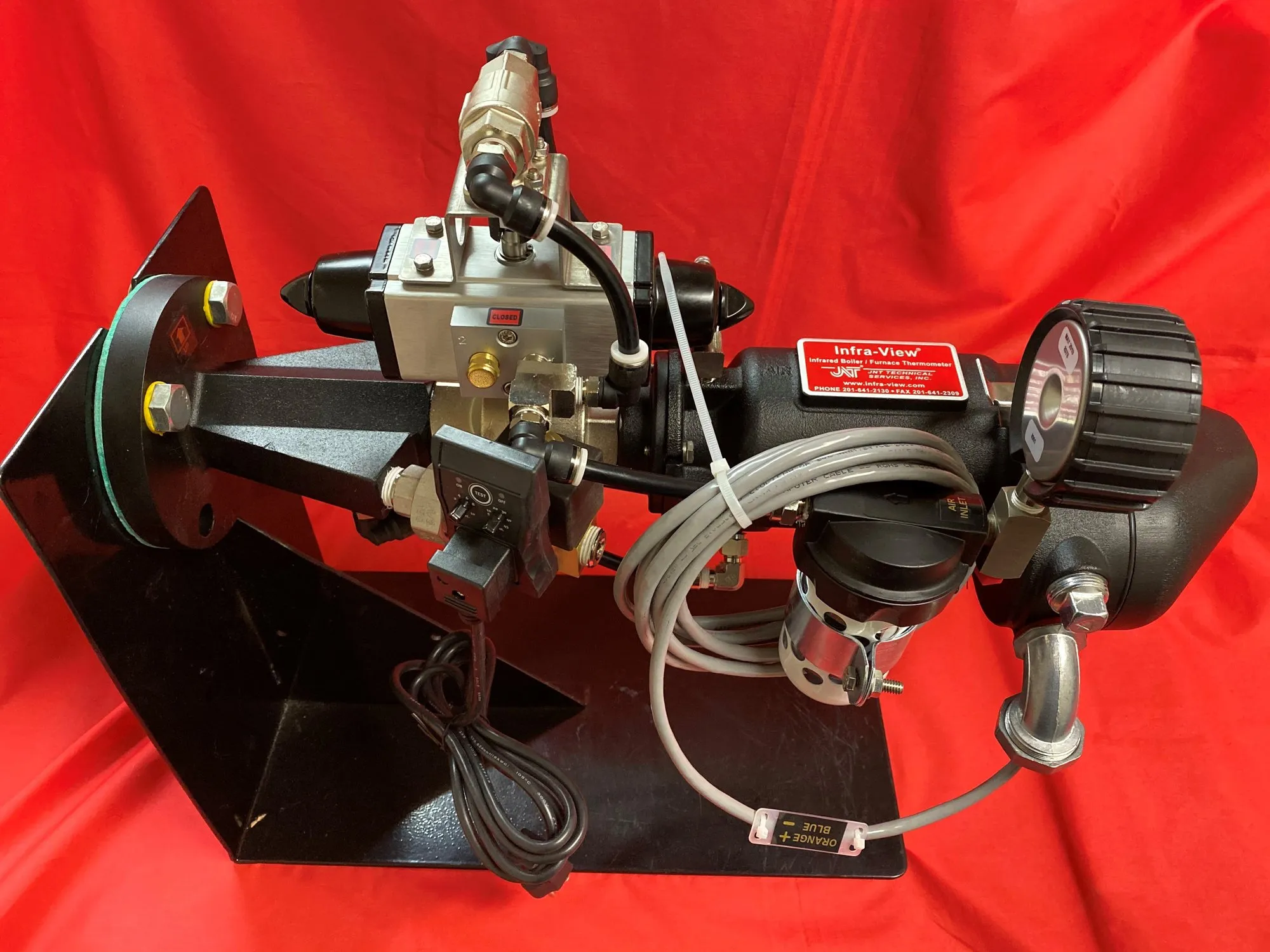

Infra-View® Infrared Thermometers are remote sensing infrared detectors that are permanently flange mounted on any port, door or penetration into the boiler or furnace. The Infra-View® patented design is supplied with a rugged protective cooling jacket that is factory assembled and pre-piped with an air cooler, purging and filtering system designed to work in most severe service environments. Customer supplied compressed air and two wire shielded signal cable are all that is necessary for operation when integrated in a 4-20 mA signal loop supplied from a DCS analog recording device. The Infra-View® infrared “non-contact” sensor monitors flue gas temperatures in the boiler or furnace ranging up to 4,500°F (higher end temperature available).

Phone: +1-201-641-2130 Email: SALES@INFRA-VIEW.COM

Read More

Infrared Boiler/Furnace Thermometer Articles

Principles of Operation – IR Pyrometer

The Infra-View® sensor detects the heated CO2 gas created in a boiler or furnace as a by product of the combustion process when fossil fuels such as, all grade coals, natural gas, oil, lignite, peat and refuse are burned.

Read More
Infrared-Boiler-Thermometer-6

Applications and Installations

Infra-View® can optimize your boiler by monitoring flue gas temperatures for: Startup, Sootblower and Slag Control; Low NOx; Fire Ball Centering; FEGT Monitoring.

Read More
Infrared-Boiler-Thermometer-7

Specifications

The Infra-View® Infrared Sensor is a two wire 4-20 mA output intelligent device powered by 24 VDC with a maximum loop impedance of 700 ohms. The Infra-View has remote online addressability and accuracy to +-1% of the reading up to 3,000°F and is factory calibrated to an NIST certified standard in accordance with MIL-STD-45662.

Read More
Infrared-Boiler-Thermometer-15-1-scaled

Technical Paper

The operation of a boiler and its auxiliary equipment requires the constant exercise of intuitive reasoning and sound engineering judgment. It is in operation that all of the factors that went into the design and construction of the system are put to the test.

Read More
Infrared-Boiler-Thermometer
